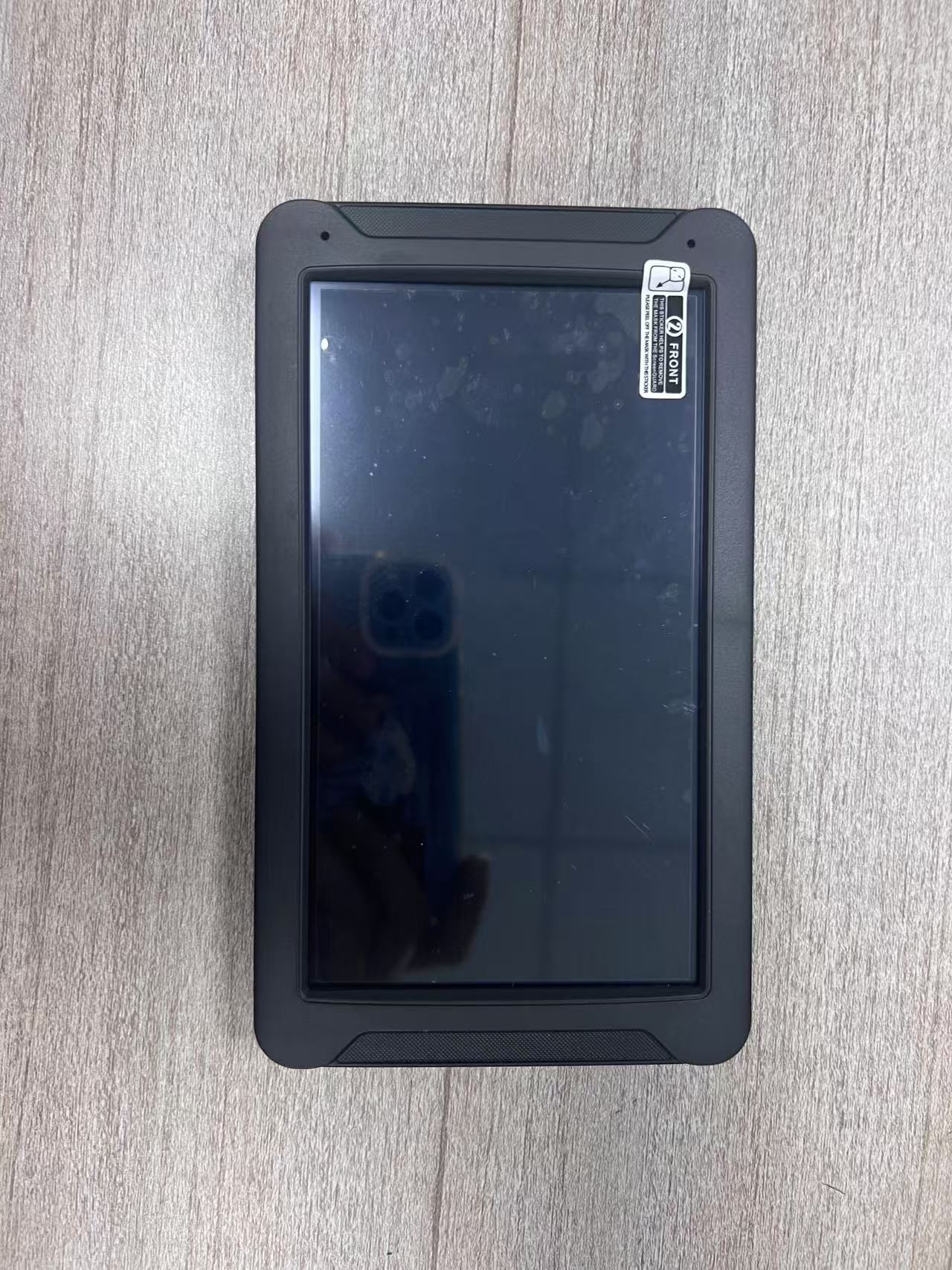

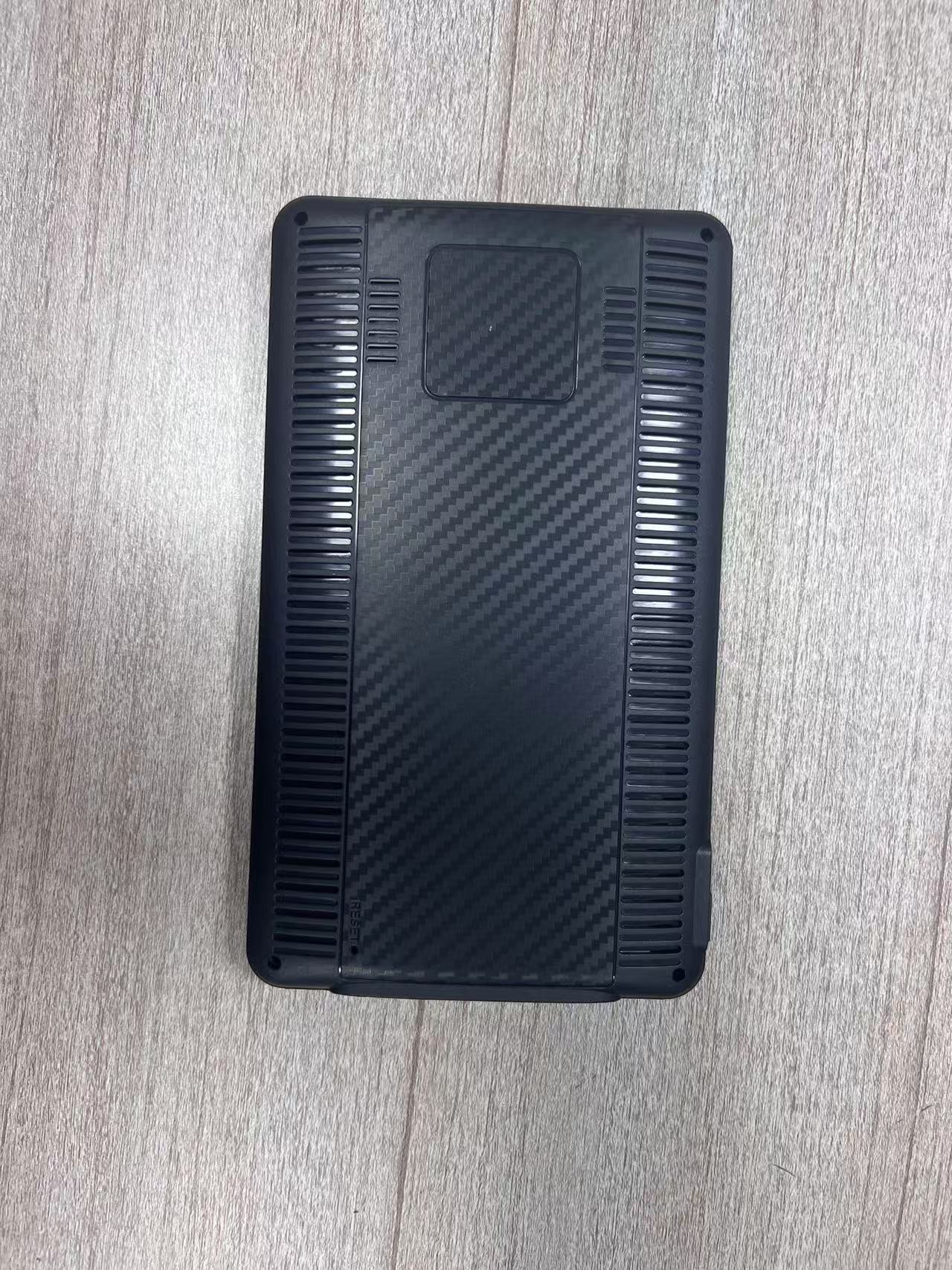

7 inch android gps navigator 1G+16G with DVR optional

Product Detail

7 inch android gps navigator

CPU	ARM	MTK8127AD Cortex A7*4 1.2GHz
GPU	2D/3D	Mali450MP4-416MHz Open GL ES2.0 2D/3D
VPU	Video encoding and decoding	1080P/30fps，MPEG-4，H.263，H.264,MPEG1/2 − H.263 encoder: D1 @ 30fps (SW) − H.264 encoder: High profile 1080p @ 30fps
Display	Size	5 inches,7 inches
	Resolution	800 * 480 pixels)
	Color	262114-color
	Backlight	LED
Memory & Flash	Memory	Lpowerddr 512MB/1024MB
	Solid-state disk	NAND: 4G/8G/16G EMMC: 8G/16G
Power and Battery	Adapter	AC 100～240V，DC 5V / 2A
	Car Charger	DC +12V，DC +5V, 2A, 2.5DC socket
	Battery Type	Lithium Battery (Rechargeable)
	Working current	580-620mA/3.7V (Backlight Brightest)
		330-370mA/3.7V (Backlight Darkest)
		740mA≤I≤1200mA，battery voltage=3.8V，low≤backlight≤high(navigation+MP3+WIFI+DVR+FMT)
	Maximum Working current	<1.45A
	Suspendcurrent	≤10mA
	USB input voltage	4.5V≤U≤5.6V
	Charging current	≤1800mA
	Battery capacity	3.7V/850-3000mAh
	Battery life	Approximately 5-6 hours
GPS/wifi/BT/FM reception four-in-one (MT6627)	Built-in GPS Receiver	Ordering Information	MT6627
		PositionAccuracy	Without Aid: 10 m 2D-RMS
		Velocity Accuracy	Without Aid: 0.1 m/s
		Acceleration Accuracy	Without Aid: 0.1 m/s2
		Timing Accuracy	< 100 ns
		Sensitivity	Tracking:-159 dBm Hot Start:-159 dBm Warm Start: -159dBm Cold Start: :-159dBm Autonomous Acquisition: -145dBm

		Time To First Fix	Cold Start: < 45 s (Autonomous) Warm Start: < 35 s Hot Start: < 2 s

		Reacquisition Time	< 1 s
		Maximum Altitude	18,000 m
		Baud rate	11520 bit/s
		Maximum Acceleration	4 G
	Wi-Fi	* Operates in 2.4 GHz frequency bands,B/ G /N * 1x1 MIMO technology improves effective throughput and range existing 802.11 b/g products * Data rates: up to 150Mbps * 802.11e-compatible bursting and I standards * BPSK, QPSK, 16 QAM, 64 QAM modulation schemes * WEP, TKIP, and AES, WPA, WPA2 hardware encryption schemes




	BT	Support BT4.0 data transmission
	FM reception	YES
DVBT2		RF 470 - 870 MHz /1 Seg RF PMIN -82 dBm Max Input Power PMAX 10 dBm
	Optional
FM	Built-in FM transmitter	KT0806L 87MHz～108MHz Step:100KHz，Stereo transmission


Gravity sensor	Built-in gravity sensor	MC3230:± 1.5g range 1 to 128 samples/sec
Speaker		1x1W/8Ω
Peripheral Interface	SD card slot	Support SD1.0 to SD3.0, MMC3.3 to 4.3, maximum 64G
	USB	USB 2.0 Host x 1 / OTG x 1
		USB	USB2.0, high speed,
		USB host	External U disk connection,MP3,MP4,storage device such as mobile hard disk can play directly Supports external 3G USB-dongle wireless internet card

	Headset	Support 3.5mm stereo output 16Ω, 0.2W
	Camera	100W(GC1024)/200W(OV2710) driving record
	HDMI	none
	Built-inAVIN	Support USB2.0 or CVBS input optional, (default is AVIN)
	Microphone	Recordable
	Buttons / Switches	Power On/Off, Reset
Input device		Capacitive chip: GSL1680 five-point touch
		Through USB interface, mouse and keyboard input are supported.
Multimedia	Video Player	support MKV，AVI，WMV，RMVB，TS，TP，M2TS，RM，MPEG，VOB，MOV，FLV，MP4，3GP,DAT,PMP 格式
	Ebook Reader	TXT,LRC,PDF,HTML,HTM,EPUG,PDF,FB2
	Audio Player	WMA, MP3,OGG,APE,FLAC,AAC,WAV
	Photo Viewer	JPG, BMP,PNG,GIF
	Accessories	Car adapter，USB Cable，user manual，mounting bracket，Travel charge)/Optional，SD Card/optional,
LED Indicator		Charging：Red on ,Battery Full:Red off and Green on
Temperature		Operation: -10~65°C
Dimensions		PCB :125mm（H）×90mm（V）
