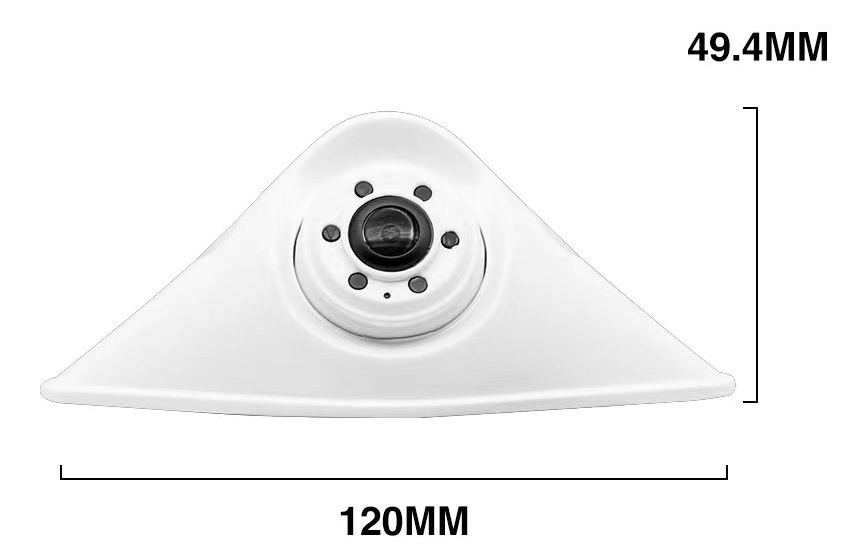

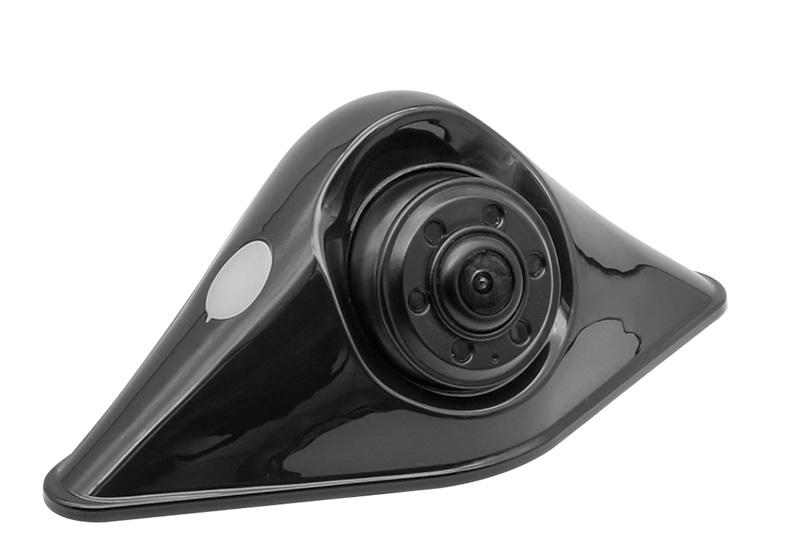

Truck camera
Truck camera
| SPEFICATIONS |
| SENSOR: 1/2.7 CMOS SENSOR 2399 |
| TV system:PAL/NTSC |
| Effective pixels: 1280(H)X960(V) |
| Resolution: 1000 TV lines |
| Scan freqency: 50Hz |
| Mini. illumination: 0.1 Lux/F1.2(0 Lux with IR on) |
| White balance:auto track |
| Gamma Correction:0.45 |
| S/N ratio: ≥70dB |
| Electronic shutter:1/50~1/100000s |
| Len: 2.0MM |
| Video Out:CVBS 1.0 vp - p, 75 Ohm |
| LED: 1-2LUX open, 3-4 LUX close |
| LED: 18PCS, Irradiation distance 5-10m |
| Power supply: suitable for DC8.5V-24V |
| Working current:250mA |
| Operating temperatures:-20℃ - 75℃,RH 5% |
| Storage temperatures: - 40 to 85 celsius centigrade degrees |
| Horizontal viewing angle:110 degrees |
| Diagonal viewing angel: 150 degrees |
| Waterproof: IP67 |
| Weight:App.60g |
